How To Install Low Voltage Lighting On Deck

Deck lighting is a smashing mode to make your deck more than attractive and useful. Follow our step-by-step instructions to larn how to install depression-voltage lights. Deck lighting is a great projection because depression-voltage lighting doesn't ordinarily require hiring an electrician. Installing deck lighting is similar to installing landscape lights.

You lot can cull from a variety of light posts, rails lights and stair riser lights. Most deck lighting systems are powered past a 12-volt transformer that is plugged into an ordinary wall outlet. Solar lights that are self-powered are available, and they don't crave wiring or transformers. Always read the manufacturer's installation instructions and contact your local building department before starting the project.

Using Transformers for Low Voltage Lighting

Most deck lighting systems require a transformer as a powersource that converts 110-volt line voltage to 12-volt depression-voltage electricity. The transformer will plug into a standard outlet and run wiring through a loop to each low-cal fixture. Some transformers use a timer or light sensor to automatically plough the lights on at night. It is very important to buy the correct transformer for your lighting organisation. Most LED lights require 12-volt DC volt transformers while near incandescent lights crave 12-volt Ac transformers. Check the specifications on the light fixtures earlier purchasing your transformer.

To determine the needed size of the transformer, you lot will demand to multiply the number of lights by the number of watts and add together 10 pct for line loss.

You volition need to purchase a transformer that tin supply at least 220 watts. Round this number up to the adjacent available transformer size.

Deck Lighting Wiring Diagram

Information technology is of import to employ the correct blazon of wiring for your low-voltage deck lighting organization. Most LED lights use 18/2 approximate wire, while most incandescent lights utilise 12/2 gauge wire. You will need to lucifer the polarity of the wire to the lights. Most wires are split into a smoothen black wire and another wire with white lettering or ribbing. You must connect the matching wires to create a working connection.

Y'all will need to create a circuit by connecting your lights with wire in a routered cavity in the railing or under the deck to protect them and hide them from view. Aurora pigtail wires can be used to connect side-mounted track lights to the primary cable line. Voltage drib can occur from line loss over a long line of lights. The position of your transformer and lights layout will create a low-voltage excursion. For best results, we recommend that y'all install your lights in a looped excursion. A straight line, T and split load installation can be used for alternating circuit layouts. LED lights must be wired in parallel, non in a serial, and polarity must exist maintained throughout the lighting system.

Safety kickoff.

1. Using a tabular array saw, cut a iii/8" ten iii/8" channel down the center of the top surface of the summit track.

Creating a space to hide the wiring.

2. After making your 2 outside cuts for the channel, movement the argue closer to the blade to remove the center material.

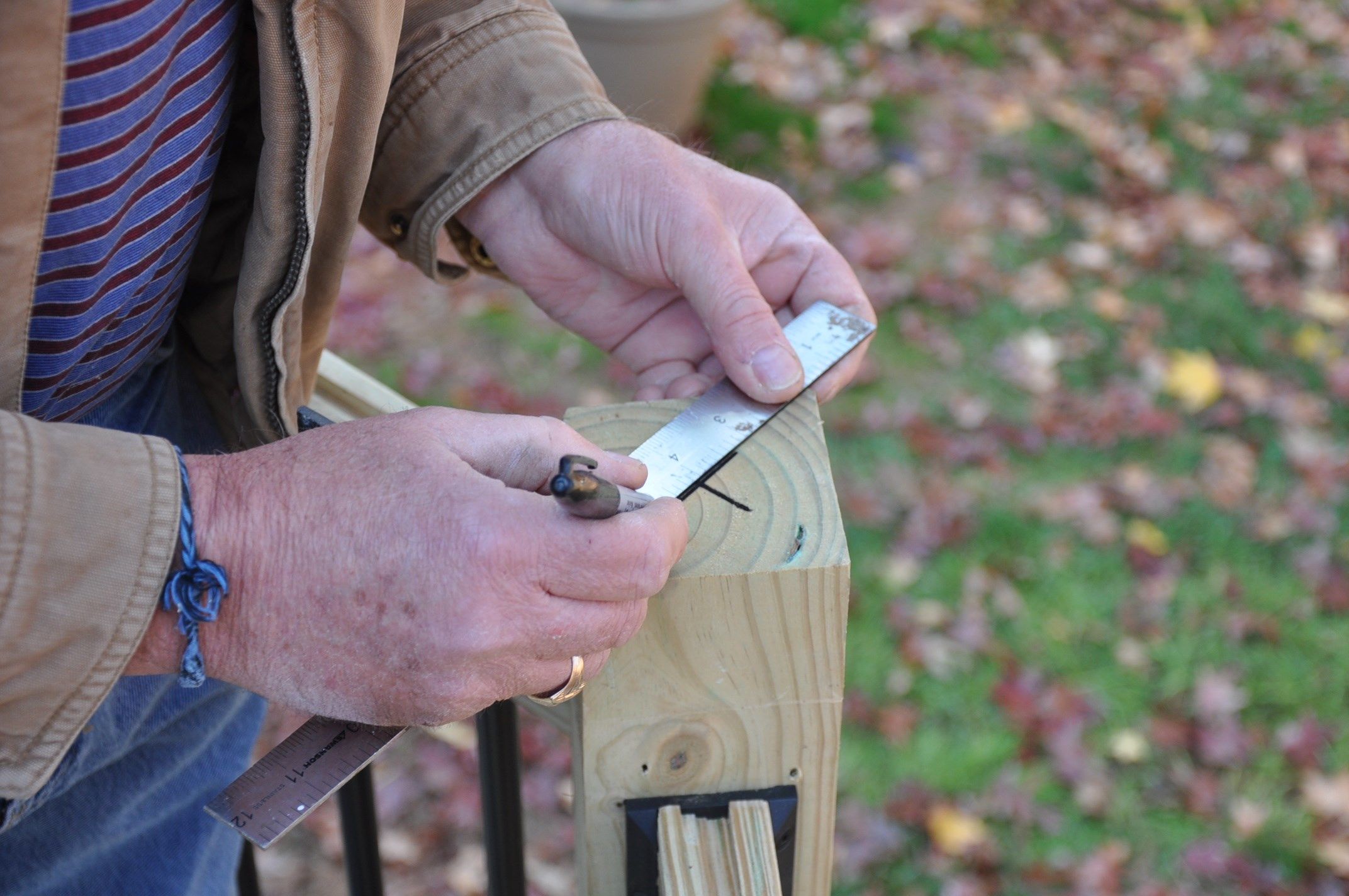

Use a ruler and pencil.

3. Mark the eye of the superlative surface on each 4x4 rail post.

We sell this forstner scrap.

4. Drill a 5"-deep hole in the center of the summit surface of the rail post using a 1-1/ii" diameter forstner flake.

Creating an opening.

5. Place the drill fleck in the top rail channel and drill a iii/8" hole in the side of the 4x4 rail post to the center pigsty.

Needle Nose Pliers

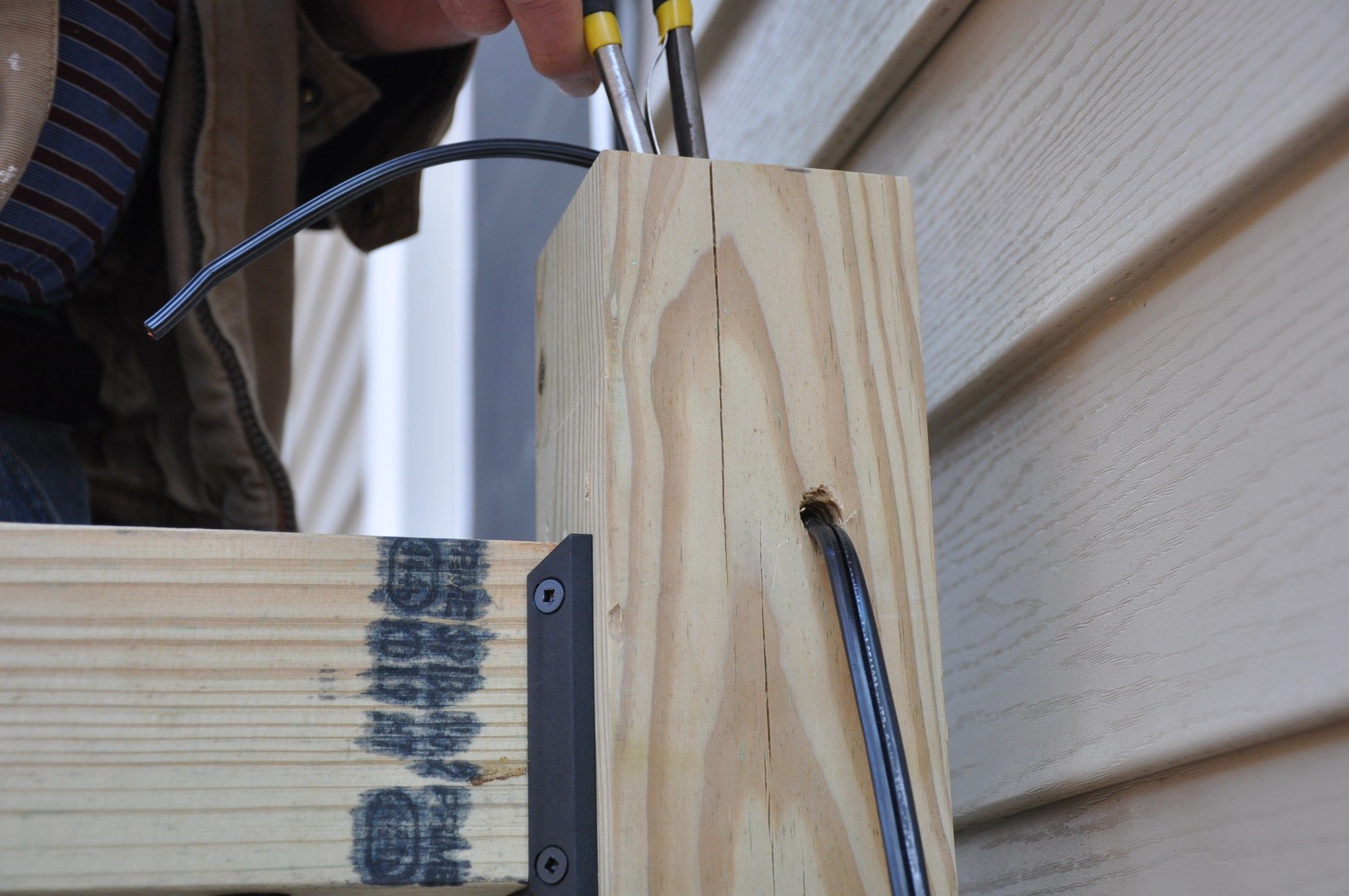

vi. Pull your low-voltage wires through the center hole and go out 6" of excess wire higher up the mail.

Next to the business firm.

vii. Run the low-voltage wire downwardly the side of the end track postal service.

Constrict the wires nether the deck.

8. Drill a hole through the deck floor and run your low-voltage wires to the transformer.

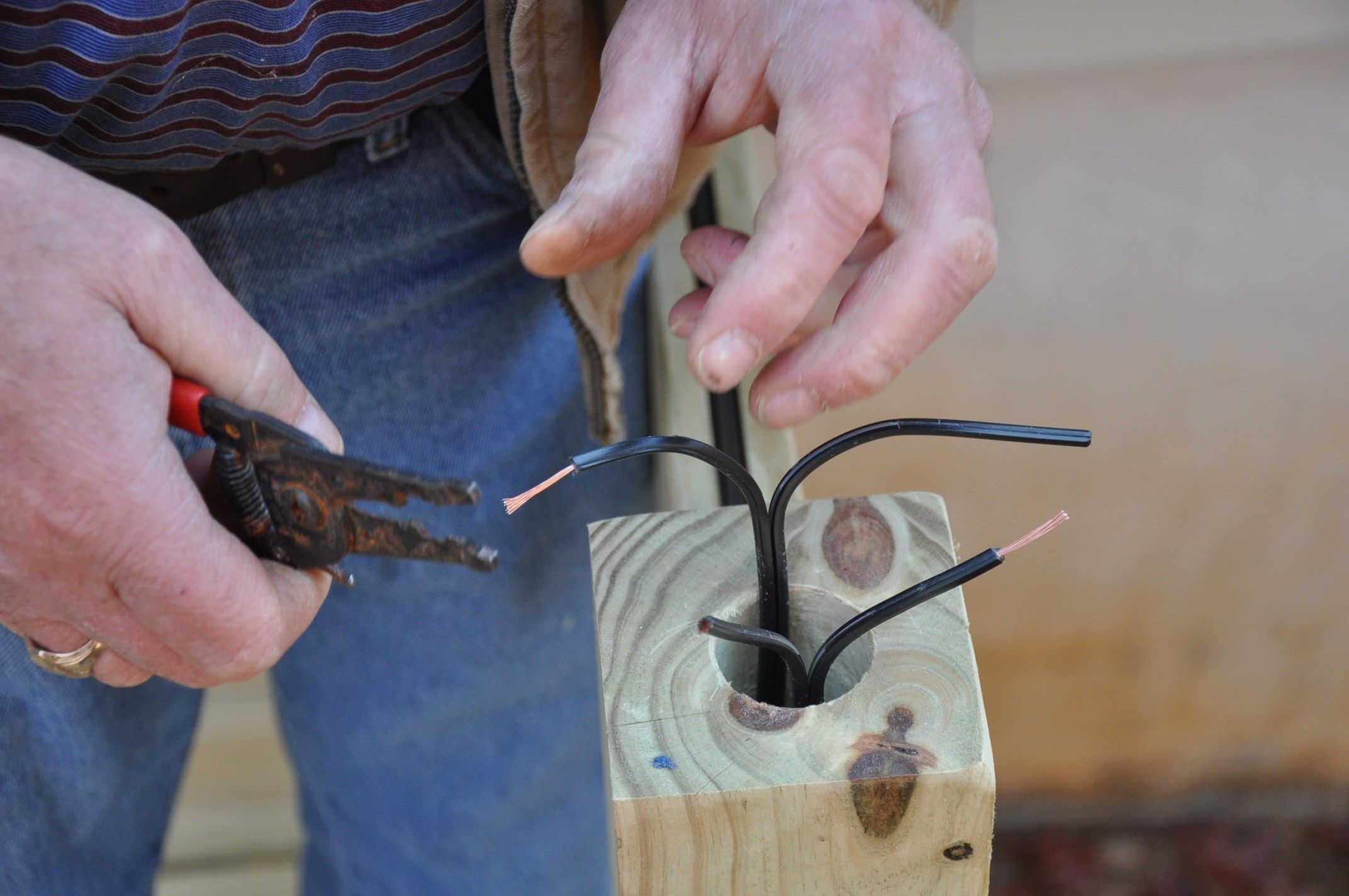

But the right amount of wiring.

9. Strip the wire ends dorsum 3/4" with a wire stripper for connections. Align the wire polarity. The negative side is always marked with white lettering or identifying markings. The positive side is polish blackness.

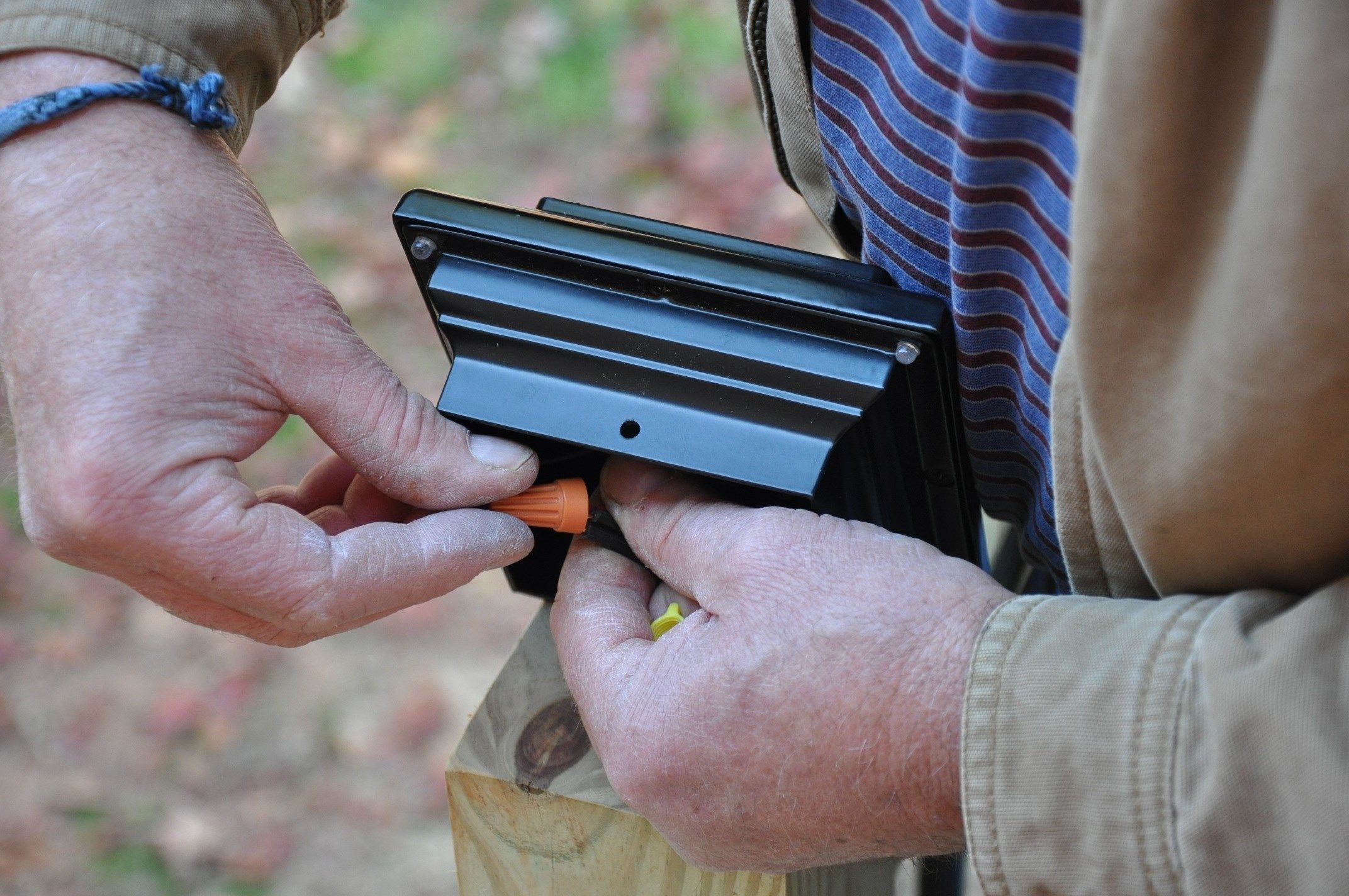

We sell a diversity of postal service cap lights.

10. Use a weatherproof wire nut to connect the low-voltage wires to the correct polarity. Screw the mail service cap calorie-free to the side of the mail with ii screws.

Powered up.

xi. Connect the low-voltage wire at the end post to the transformer near an electrical outlet.
